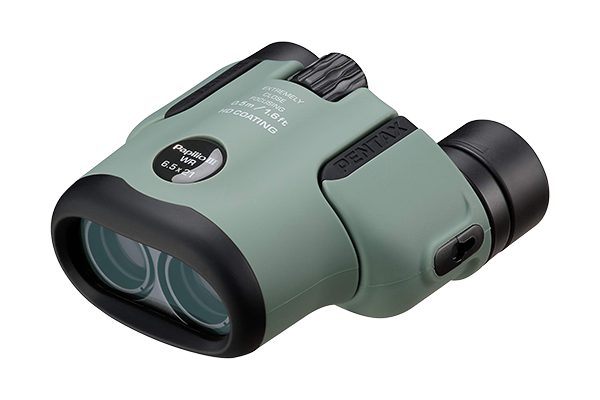

Papilio III WR

Compact binoculars capable of close-distance observation, and the first Papilio-series model to feature a weather-resistant construction for use in various viewing conditions.

  • Porro prism
  • Convergent lens
  • Aspherical lens
  • High refractivity
  • Fully-multi coating
  • HD coating
  • Anti-stain coating
  • Long eye relief
  • Weather-resistant
  • Rubber coat
  • 50cm macro observation
  • Helicoid eyepiece ring
  • Tripod socket provide

Papilio III WR

◆ Close-distance observation from a minimum focusing distance of approximately 50 centimeters

In general, observing an object from a close distance with a pair of binoculars causes a discrepancy in the visual field between the right and left eyes. In order to compensate for this discrepancy, the Papilio III WR incorporates the PENTAX-original convergence correction mechanism, which slides the objective lenses in conjunction with the focusing distance. This unique mechanism lets the user more comfortably observe subjects at close range without suffering eye fatigue. Since the objective lenses returns to their original position in long-range observation, this model also performs superbly in normal applications, such as birdwatching, hiking, concerts and sports viewing.

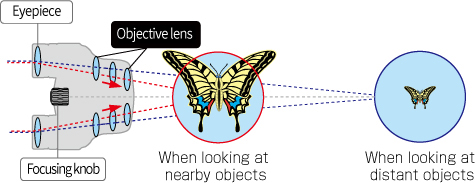

Mechanism of “Macro observation”

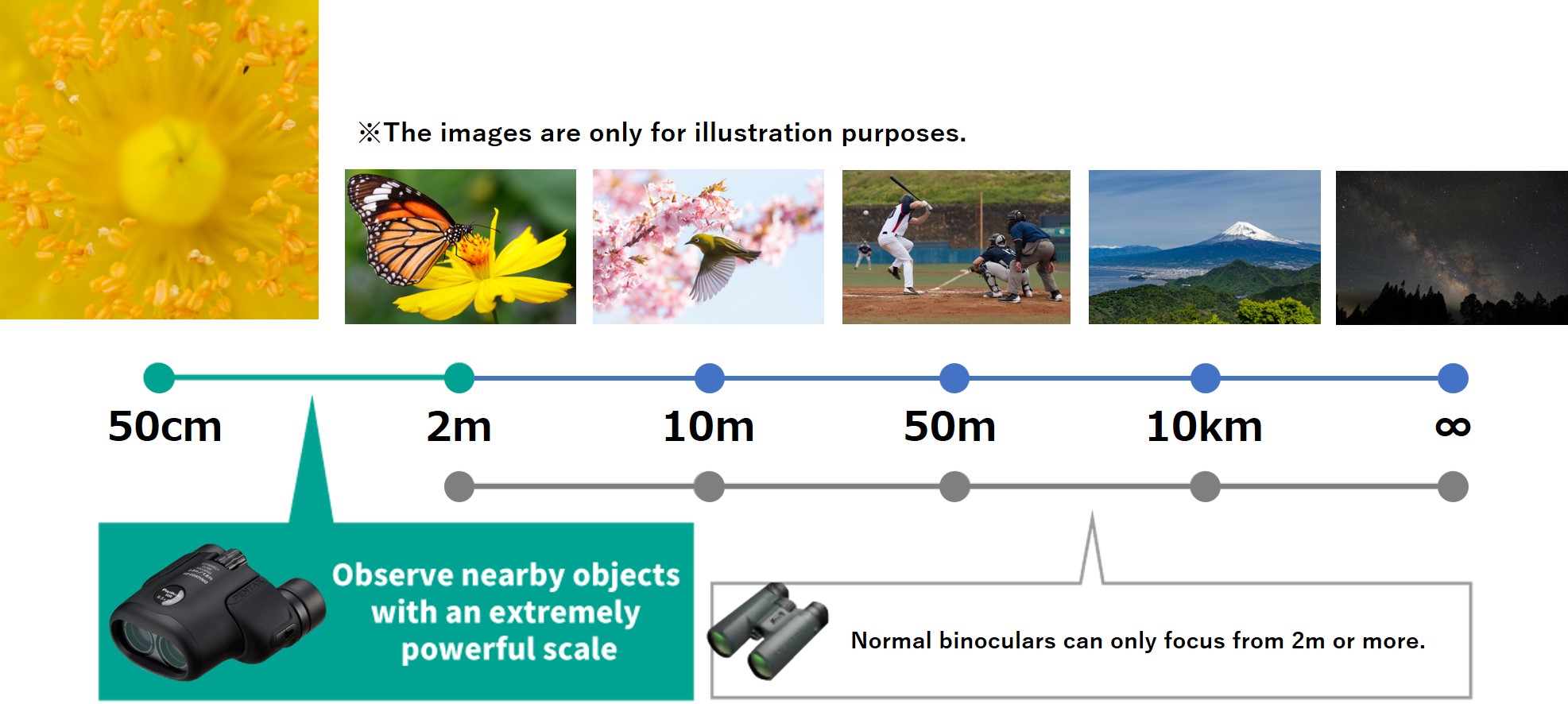

Approximate Observation Distance

Only on Papilio III

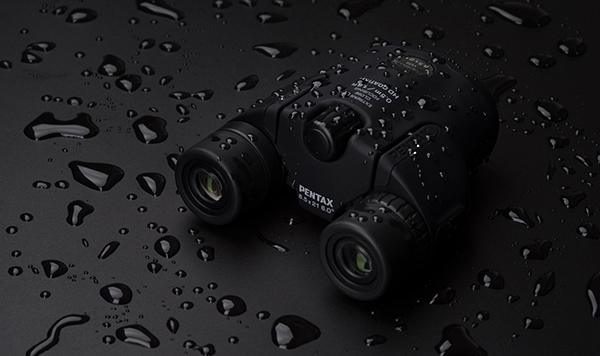

The first Papilio-series model to feature a weather-resistant construction

For the first time in the Papilio series, the Papilio III WR features a weather-resistant construction which minimizes the intrusion of water and moisture into the interior, making it a highly dependable observation tool in the rain and mist and at locations prone to water splashes. An anti-stain coating has also been applied to the eyepieces and front plate-glass surfaces to minimize the adhesion of dust and stains.

Only on Papilio III

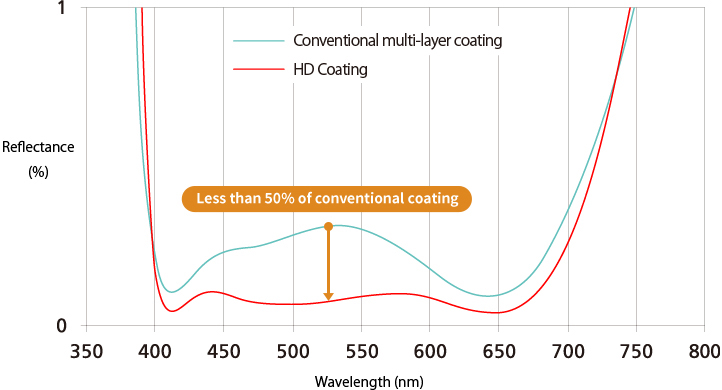

◆ Latest HD Coating to further upgrade optical performance

A high-performance HD Coating has been newly adopted. Compared with conventional multi-coatings, this assures higher transmittance with less reflection. The result is that the Papilio III WR delivers extra-clear, higher-contrast images even under such demanding conditions as backlighting.

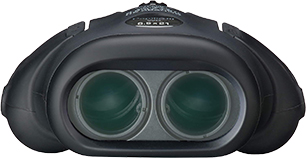

High-performance optical design

All optical elements of the Papilio III WR are treated with a full multi-coating process to assure the optimum imaging performance, while minimizing unwanted reflections. The combination of the aspherical optical elements and the high-refraction BaK4 index glass prisms also delivers a sharp, clear subject image without distortion, even at the edges of the image field.

Easy-to-hold rubber casing

The entire binocular body is encased in a protective rubber casing to assure better holding comfort and superior impact resistance.

Compact and portable

As it is compact enough to fit in the palm of your hand, it is easy to carry in a bag or hang around your neck.

Long eye relief

This model’s long 15mm eye relief allows even eyeglass-wearers to clearly and comfortably observe the entire field of vision.

Other features

・RICOH-original dual-axis eye-space adjustment mechanism for simple, effortless adjustment of the width between the eyepieces
・Helicoid-type eyepiece rings for single-action, push-and-pull adjustment of eyepiece positions
・Click-stop diopter adjustment mechanism to prevent accidental shift of the diopter settings
・Quick-action neck strap, with instant attachment and release operations
・Tripod Adapter U (a currently available, optional accessory) for swift, effortless installation on a tripod

Use Cases

At museums and art galleries

Try using Papilio at museums or at art galleries to look at jewelry, oil paintings, and fine historical works. By looking through binoculars, you can see the details more realistically and can also enjoy the feeling as if the object is floating from the three-dimensional effect.

For botanical and nature observation

Papilio is very useful for hiking and local strolls. If you look at the flowers near your feet, you will notice the hidden beauty of the flower and butterfly and the other insects coming and going. Papilio will open up a new world with a different macro perspective.

For concerts and sports watching

Not just for nearby objects, Papilio has excellent performance as a standard binocular to look at distant points.
The bright vision powered by “Full multi-coating” enhances the realistic feeling when watching sports and live performance.

For stargazing

Although Papilio is well known for its close-range viewing capability, it is also useful for stargazing in outdoor settings. It is equipped with technologies necessary for stargazing such as full multi-coating and aspherical lenses.

Papilio III WR



Specifications – Papilio III WR & Papilio II

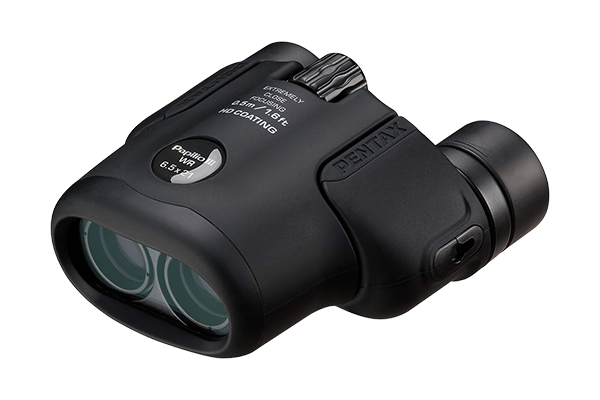

Products name Papilio III 6.5x21 WR

Papilio III 6.5×21 WR
Papilio II 6.5x21,Papilio Ⅱ 6.5x21 WF-L

Papilio II 6.5×21

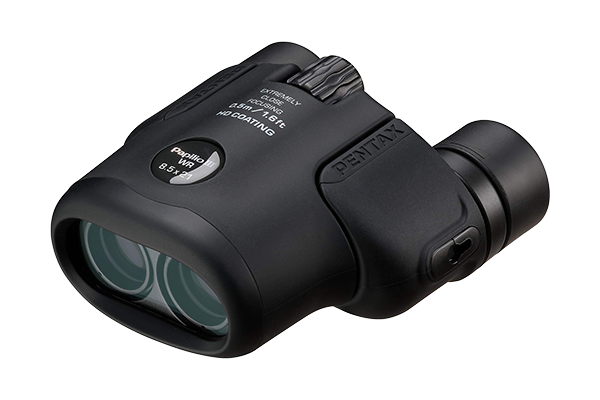

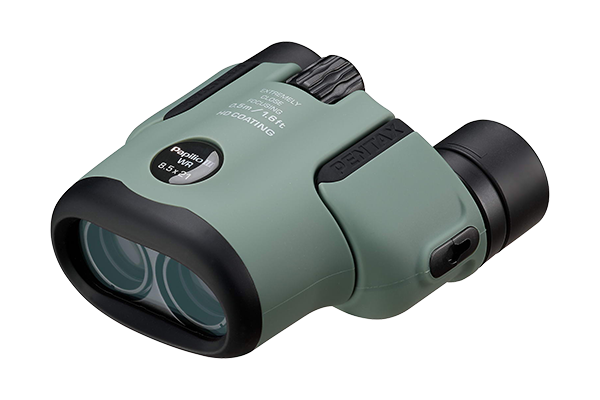

Papilio III 8.5x21 WR

Papilio III 8.5×21 WR
Papilio II 8.5x21,Papilio Ⅱ 8.5x21 WF-L

Papilio II 8.5×21
Magnification 6.5x 6.5x 8.5x 8.5x
Objective lens diameter 21mm 21mm 21mm 21mm
Real field of view
Field of view at 1000 yards
7.5° 7.5° 6.0° 6.0°
Field of view at 1000m 131m 131m 105m 105m
Exit Pupil 3.2mm 3.2mm 2.5mm 2.5mm
Eye Relief 15mm 15mm 15mm 15mm
Relative Brightness 10.2 10.2 6.3 6.3
Minimum Focusing Distance 0.5m 0.5m 0.5m 0.5m
Height (approx.) 114mm 114mm 116mm 116mm
Width (approx.) 110mm 110mm 110mm 110mm
Thickness (approx.) 55mm 55mm 55mm 55mm
Weight (approx.) 295g 290g 295g 290g
Weather-resistant

Papilio III WR

Accessories

  • Eyepiece lens cap
  • Case
  • Neck strap

Papilio III WR

Papilio III WR

What’s in the Box

  • Binocular
  • Eyepiece lens cap
  • Case
  • Neck strap
